Ultrasonic Assisted Machining
Your Professional Ultrasonic Assisted Machining Supplier
Our goal is to become your true partner in the field of power ultrasonic components in China. Resonance Technology (Ningbo) Co.,Ltd. specializes in researching, developing, and selling high-performance power ultrasonic core components and related complete sets of equipment. We have a skilled engineering team dedicated to refining every stage, from product development and process improvement to production oversight, ensuring every product delivered meets rigorous quality and performance standards. The price is competitive and the product is quality-assured, which is a good choice for your long-term cooperation.
Why Choose Us
Our Factory
The company has assembled top industry technical talents along with seasoned marketing and management professionals. Leveraging cutting-edge proprietary core technologies, it specializes in researching, developing, and selling high-performance power ultrasonic core components and related complete sets of equipment. With around 2000 square meters of research and production facilities, the company possesses a well-equipped testing center capable of conducting more than 120 types of tests in six categories.
Our Certificate
National high-tech enterprise; GB/T19001-2016/ISO9001:2015 quality management system certification; 23 patents and 3 software copyrights granted.
Production equipment
Three-axis machining center, CNC lathe, high-temperature aging furnace, ultrasonic component analyzer, high-precision oscilloscope, power analyzer, cavitation intensity measurement instrument, spectrum analyzer, laser particle size analyzer, digital bridge, infrared thermal imaging instrument, microscope, laser vibrometer, etc.
Production market
The company's products are widely used in various industries such as new materials, fine chemicals, automotive, and new energy. Since its establishment, it has achieved cumulative sales of over 45 million RMB.
Advantages of Ultrasonic Assisted Machining
Increased Efficiency
Ultrasonic vibrations help to ensure consistent throughput rates by improving the movement of particle sizes of <300 micron through the mesh, resulting in faster, more effective screening – up to 300% more efficient in some cases.
Improved Accuracy
Ultrasonics help to prevent blockage and blinding of mesh apertures, reducing the risk of oversize or undersize particles passing through the mesh screen, resulting in more accurate separation of materials improving quality control of the product.
Longer Mesh Life
Ultrasonics prevent the mesh from becoming clogged or damaged during the screening process which reduce the frequency of mesh replacement. This leads to a maintenance cost saving.
Reduced Downtime
By ensuring consistent throughput rates, ultrasonics help to reduce downtime and maintenance costs associated with sieving machines by keeping the mesh clear.
Environmentally Friendly
Ultrasonics fluidise the product and prevent it from building up on the mesh wires.
Specification of Ultrasonic Assisted Machining
|
Product model |
ResoTab-P20 |
|
Frequency |
20kHz |
|
Range |
1-60kHz |
|
Vibration direction |
Z (uniform) |
|
Table size |
170x85mm |
|
L W H |
250x170x158mm |
|
Amplitude |
8 μm |
|
Max power |
1500W |
|
Weight |
9.1 kg |
Features of Ultrasonic Assisted Machining

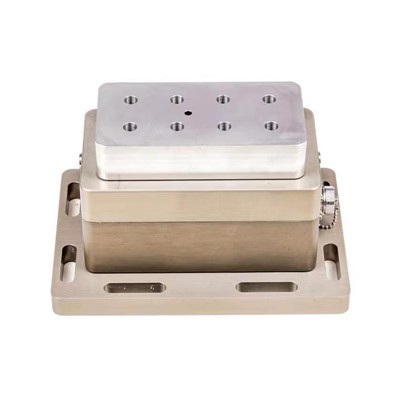

The ultrasonic vibration table stably output high-frequency ultrasonic vibration, integrated with vacuum system, IP65 waterproof grade, and replaceable aluminum alloy vibration plate. Suitable for applications such as high-frequency excitation, sensor calibration, ultra-high cycle fatigue testing, and ultrasonic vibration assisted machining.
Application of Ultrasonic Assisted Machining
Precision machining: One of the most significant applications of ultrasonic vibration tables is in precision machining. When it comes to cutting, drilling, or milling, achieving high precision is crucial. Ultrasonic vibration tables can help with that. By adding high - frequency vibrations to the workpiece, these tables reduce the cutting force.
Material testing: Another important application is in material testing. Ultrasonic vibration tables can be used to simulate real - world vibrations and stresses on materials. This helps engineers and researchers understand how materials will perform under different conditions.
3D printing: 3D printing has become increasingly popular in recent years, and ultrasonic vibration tables can play a big role in improving the quality of 3D - printed parts. During the printing process, the layers of material need to bond well with each other.
Pharmaceutical and food industries: In the pharmaceutical and food industries, ultrasonic vibration tables are used for mixing and homogenizing. In pharmaceutical manufacturing, it's important to ensure that active ingredients are evenly distributed in a drug formulation.
Jewelry making: Jewelry making requires a high level of precision and detail. Ultrasonic vibration tables can be a valuable tool in this industry. They can be used for cleaning jewelry parts, removing dirt and debris from hard - to - reach areas.
Electronics manufacturing: In electronics manufacturing, ultrasonic vibration tables are used for soldering and component placement. When soldering, the vibrations can improve the wetting of the solder on the circuit board, resulting in better electrical connections.
Packing and Shipping of Ultrasonic Assisted Machining
|
packing |
Wooden box |
|
Shipping |
Shipped by road, sea, rail |
FAQ
As one of the leading ultrasonic assisted machining manufacturers and suppliers in China, we warmly welcome you to buy ultrasonic assisted machining for sale here from our factory. All customized products are with high quality and competitive price.
